WAC Lighting Volta Shallow 4.5IN Square Trimless Downlight Trim

from $323.95
Swatch Options
Finish:
Swatch Options
Beam Spread:
Swatch Options
CRI/Color Temperature:
Selection Not Available. This option or combination of options is not currently available. Please select another option.

THIS ITEM IS OUT OF STOCK
$323.95
Notify Me When Available
  • Shipping Cost: Free Shipping
  • Shipping Time: Please make a selection.
  • 100% Price Match Shop with Confidence: 30 Day Returns
  • # SKU: Make a selection
This Product is Made to Order
  • Quick Ship
  • Warranty Included

Description

Volta is the quintessential high performance LED architectural recessed downlight. Volta can be specified with variable serviceable drivers to plan your project in accordance with energy and lighting requirements up to 1,500 Lumens from a 2 in aperture or up to 3,000 Lumens from the 4.5 in. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.


Features

  • Volta Collection
  • Suitable for interior use
  • Textured glass lens
  • Hardwired
  • Optimized cut-off for superior glare control
  • Wide range of accessories, including glare control, optic and color lenses
  • Field interchangeable optics
  • Beam spreads from 15 degree spot to 60 degree wide flood
  • Increased field angle for reduced scalloping
  • Low ceiling and close-to-wall applications
  • Field selectable light engine height for cut-off angle adjustment (32 degree - 40 degree) and accessory use
  • Integral patterned tempered trim lens included standard
  • Compatible with a wide range of accessories
  • Mounting: heavy gauge retention clips support trim firmly, safety cabling standard
  • Smooth and continuous dimming to 1% with an Electronic Low Voltage (ELV) or 0-10V dimmer
  • Available with Lutron Driver (Housing with L1 in Part #) for maximum compatibility with any Lutron Lighting Control System
  • ETL Listed
  • Wet rated for exterior use
  • Title 24
  • ADA Compliant
  • Energy Star Rated
  • Available in Flood, Narrow, Spot or Wide Flood beam spread
  • Available in various CRI/Color Temperatures and finishes
Sku

Current selected SKU:

Other available SKUs: R4SD1L-F827-BK, R4SD1L-F827-CB, R4SD1L-F827-HZ, R4SD1L-F827-WT, R4SD1L-F830-BK , R4SD1L-F830-CB, R4SD1L-F830-HZ, R4SD1L-F830-WT, R4SD1L-F835-BK, R4SD1L-F835-CB, R4SD1L-F835-HZ, R4SD1L-F835-WT, R4SD1L-F840-BK, R4SD1L-F840-CB, R4SD1L-F840-HZ, R4SD1L-F840-WT, R4SD1L-F927-BK, R4SD1L-F927-CB, R4SD1L-F927-HZ, R4SD1L-F927-WT, R4SD1L-F930-BK, R4SD1L-F930-CB, R4SD1L-F930-HZ, R4SD1L-F930-WT, R4SD1L-N827-BK, R4SD1L-N827-CB, R4SD1L-N827-HZ, R4SD1L-N827-WT, R4SD1L-N830-BK, R4SD1L-N830-CB, R4SD1L-N830-HZ, R4SD1L-N830-WT, R4SD1L-N835-BK, R4SD1L-N835-CB, R4SD1L-N835-HZ, R4SD1L-N835-WT, R4SD1L-N840-BK, R4SD1L-N840-CB, R4SD1L-N840-HZ, R4SD1L-N840-WT, R4SD1L-N927-BK, R4SD1L-N927-CB, R4SD1L-N927-HZ, R4SD1L-N927-WT, R4SD1L-N930-BK, R4SD1L-N930-CB, R4SD1L-N930-HZ, R4SD1L-N930-WT, R4SD1L-S827-BK, R4SD1L-S827-CB, R4SD1L-S827-HZ, R4SD1L-S827-WT, R4SD1L-S830-BK, R4SD1L-S830-CB, R4SD1L-S830-HZ, R4SD1L-S830-WT, R4SD1L-S835-BK, R4SD1L-S835-CB, R4SD1L-S835-HZ, R4SD1L-S835-WT, R4SD1L-S840-BK, R4SD1L-S840-CB, R4SD1L-S840-HZ, R4SD1L-S840-WT, R4SD1L-S927-BK, R4SD1L-S927-CB, R4SD1L-S927-HZ, R4SD1L-S927-WT, R4SD1L-S930-BK, R4SD1L-S930-CB, R4SD1L-S930-HZ, R4SD1L-S930-WT, R4SD1L-W827-BK, R4SD1L-W827-CB, R4SD1L-W827-HZ, R4SD1L-W827-WT, R4SD1L-W830-BK, R4SD1L-W830-CB, R4SD1L-W830-HZ, R4SD1L-W830-WT, R4SD1L-W835-BK, R4SD1L-W835-CB, R4SD1L-W835-HZ, R4SD1L-W835-WT, R4SD1L-W840-BK, R4SD1L-W840-CB, R4SD1L-W840-HZ, R4SD1L-W840-WT, R4SD1L-W927-BK, R4SD1L-W927-CB, R4SD1L-W927-HZ, R4SD1L-W927-WT, R4SD1L-W930-BK, R4SD1L-W930-CB, R4SD1L-W930-HZ, R4SD1L-W930-WT show more

Catalog ID

15315445

Reference ID

"WAC Lighting Volta Shallow 4.5IN Square Trimless Downlight Trim" (Stock ID 92898000905)

Product Warranty

As provided by WAC Lighting:
5 years functional, 2 years finish.

Contact customer service

Have a question about this product? Need help finding something? Our expert Customer Service team is here to help. Give us a call at (888) 222-4410 or email us.

Prop 65 - California
Volta Shallow 4.5IN Square Trimless Downlight Trim

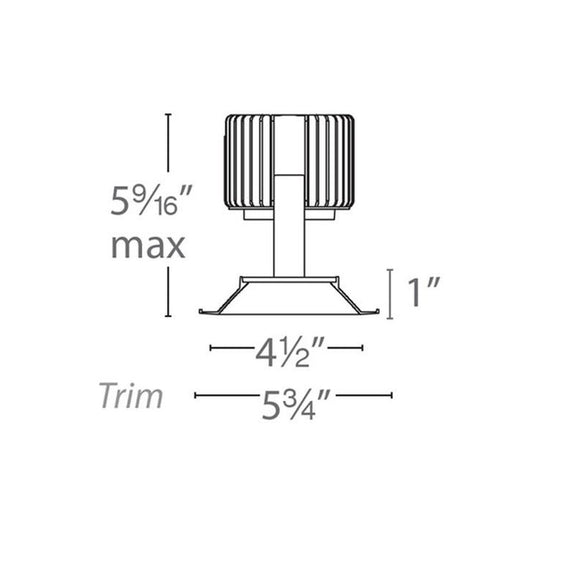

Dimensions:

  • Overall: 5.75 in W x 5.75 in D x 5.6 in H
  • Cutout: 5.1 in
  • Trim Size: 5.75 in
  • Aperture: 4.5 in

Lamp Type:

  • LED

Bulbs:
Spot 15 Degrees:

  • 1 x 15-25-36W 120-240-277V 655-1345 Lumens, 85CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 698-1435 Lumens, 85CRI, 3000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 729-1500 Lumens, 85CRI, 3500K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 735-1513 Lumens, 85CRI, 4000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 533-1097 Lumens, 90CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 569-1170 Lumens, 90CRI, 3000K LED lamp (included)

Narrow 25 Degrees:

  • 1 x 15-25-36W 120-240-277V 1277-2624 Lumens, 85CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1361-2800 Lumens, 85CRI, 3000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1423-2926 Lumens, 85CRI, 3500K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1434-2952 Lumens, 85CRI, 4000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1039-2140 Lumens, 90CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1109-2282 Lumens, 90CRI, 3000K LED lamp (included)

Flood 45 degrees:

  • 1 x 15-25-36W 120-240-277V 1259-2587 Lumens, 85CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1342-2760 Lumens, 85CRI, 3000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1403-2885 Lumens, 85CRI, 3500K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1414-2910 Lumens, 85CRI, 4000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1024-2109 Lumens, 90CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1093-2250 Lumens, 90CRI, 3000K LED lamp (included)

Wide Flood 60 Degrees:

  • 1 x 15-25-36W 120-240-277V 1170-2404 Lumens, 85CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1247-2565 Lumens, 85CRI, 3000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1304-2681 Lumens, 85CRI, 3500K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1314-2704 Lumens, 85CRI, 4000K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 952-1960 Lumens, 90CRI, 2700K LED lamp (included)
  • 1 x 15-25-36W 120-240-277V 1016-2091 Lumens, 90CRI, 3000K LED lamp (included)

Listing:

  • ETL
  • cETL
  • ADA
  • Title 24 (for 90CRI version)
  • Wet Location

Materials

Die cast aluminum, glass.
