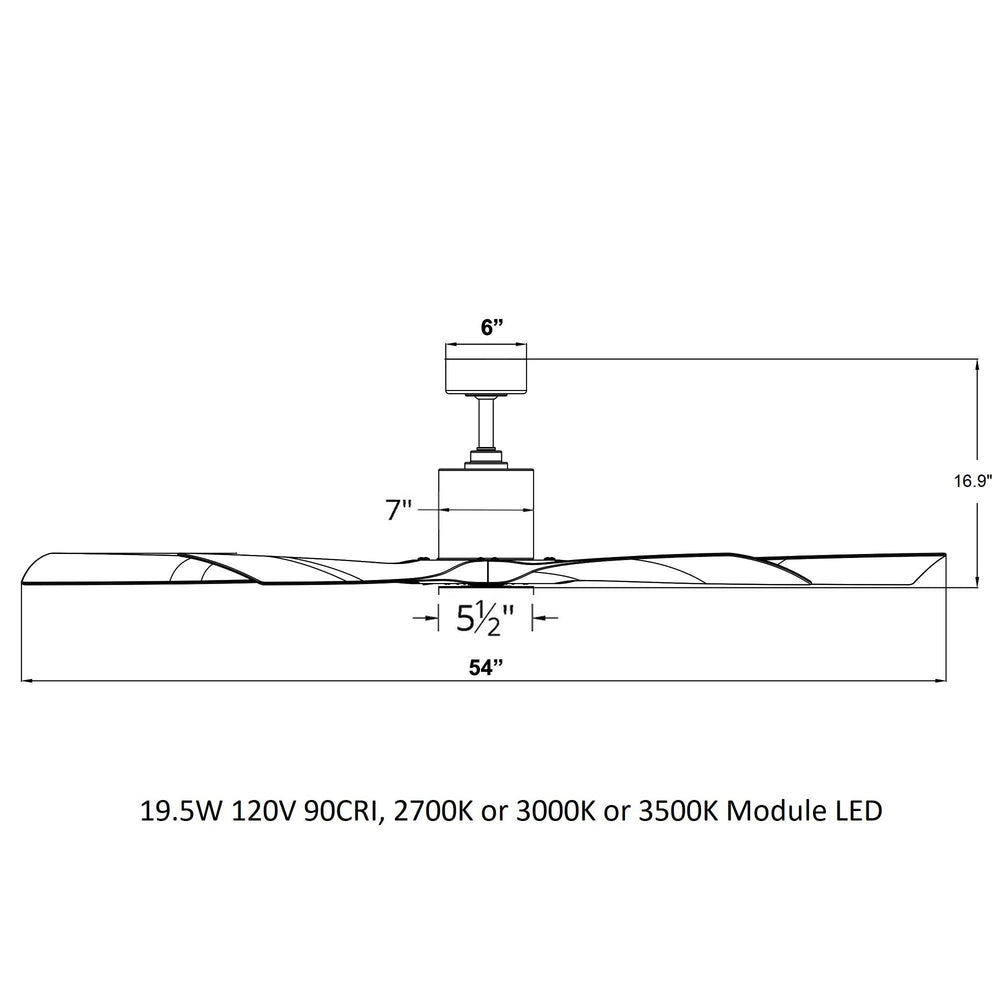

Dimensions:
54 in blade span:
- Overall: 54 in W x 15.5 in H
- Blade Span: (5)-23.5 in
- Motor Size: 125 x 20 mm

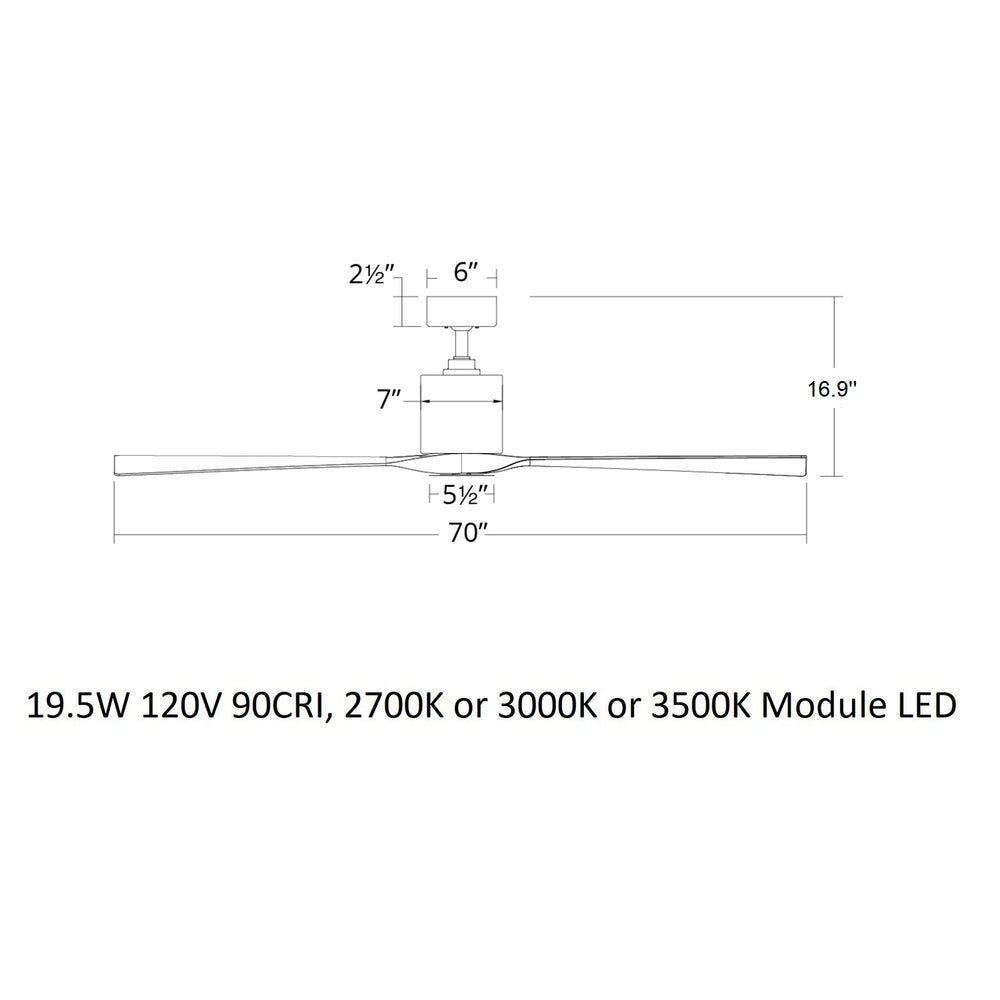

70 in blade span:
- Overall: 70 in W x 16.9 in H
- Blade Span: (5)-31.5 in
- Motor Size: 125 x 25 mm
Blade Pitch: 14 degrees
Blade Height: 15.5 in
Body: 7 in Dia
Canopy: 6 in Dia x 2.5 in H
Wire Length: 80 in
Downrod: 0.75 in Dia x 6 in H

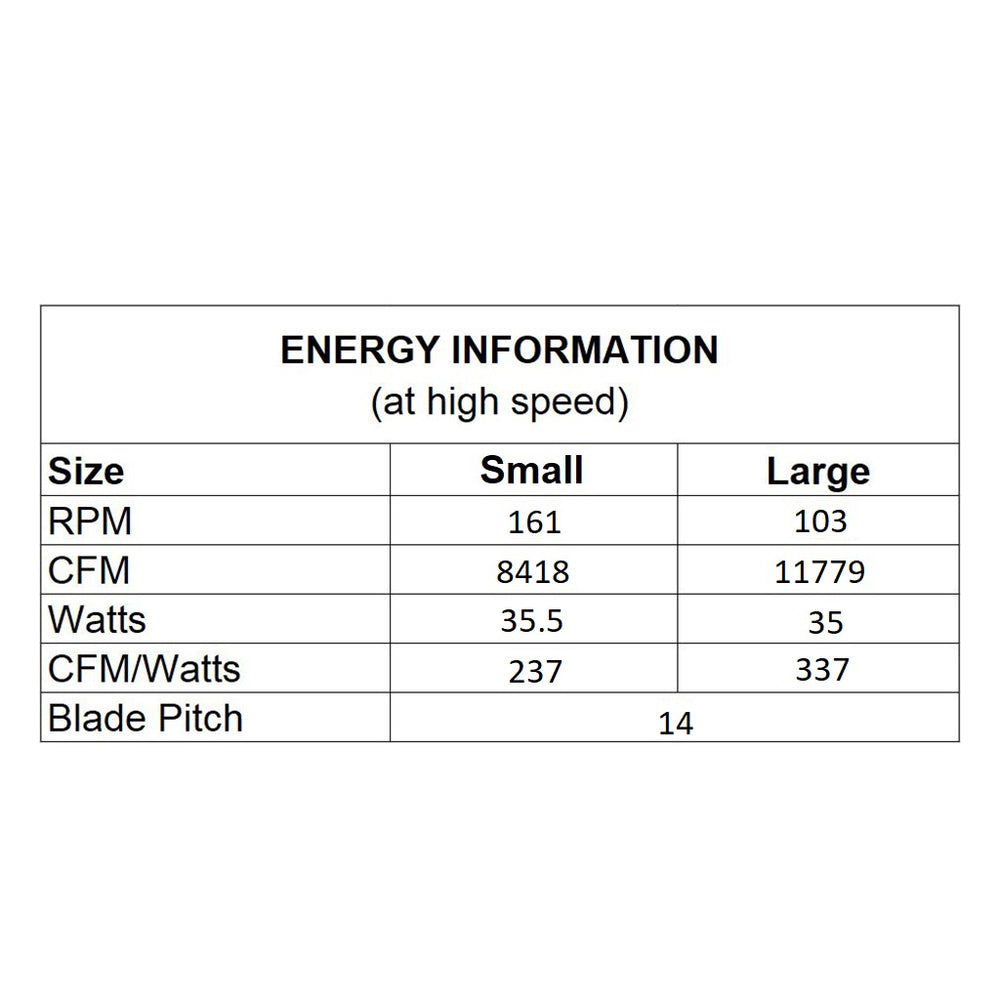

Energy Information:
54 in blade span:
- RPM: 161
- Airflow measure in cubic feet per minute at high speed (CFM): 8418
- Watts at high speed: 35.5
- Airflow efficiency at high speed (CFM/Watts): 237
70 in blade span:
- RPM: 103
- Airflow measure in cubic feet per minute at high speed (CFM): 11779
- Watts at high speed: 35
- Airflow efficiency at high speed (CFM/Watts): 337
Lamp Type:
- LED
Bulbs:
- 1 x 19.5W 120V 90CRI, 2700K/3000K/3500K Module LED lamp (not included)
Listing:
- UL
- cUL
- ETL
- cETL
- CSA
- Title 24
- Wet Rated
- Title 20
- ADA
Packaged Dimensions:
- 54 in blade span: 31.8 in W x 18.1 in D x 10.5 in H
- 70 in blade span: 36 in W x 22.1 in D x 12.4 in H
Product Weight:
- 54 in blade span: 19.75 lbs.
- 70 in blade span: 24.47 lbs.
Packaged Weight:
- 54 in blade span: 23.37 lbs.
- 70 in blade span: 31.97 lbs.
Product URL
item #:
Prepared for:
Project:
Room:
Placement:
Approval:
- Shipping Cost: Free Shipping
-
Shipping Time: Please make a selection.
- Shop with Confidence: 30 Day Returns
- # SKU: Make a selection
- Quick Ship
- Wet Rated
- LED Compatible
- Energy Efficient
- UL Listed
- Warranty Included
Description
Inspired by the golden age of flying, this smart fan takes technology to the next level. Pair it with the exclusive Modern Forms app to save on energy costs and intuitively create schedules that adapt to your behavior. Two simulated wood finishes contrast with the matte black or graphite housings for an understated look in interior or exterior spaces. Available with an optional LED luminaire encased in opal glass.
Compatible With
- Bluetooth Remote Control with on/off, 6 speed, reverse, and dim to 1%, Android or iOS Device App Included (F-RCBT-WT)
- Bluetooth Wall Control with on/off, 6 speed, reverse, and dim to 1%, Android or iOS Device App Included (F-WCBT-WT)
Features
- Aviator Collection
- Contemporary outdoor ceiling fan
- Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control4, and Josh AI; Coming Soon: Savant, Lutron Homeworks, and Nest
- Free app download: Sync with our exclusive Modern Forms app to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs; New: Bluetooth compatible for improved range and an unlimited amount of fans can be controlled with remote or wall control within range
- Bluetooth hardwired wall control included (Part# F-WCBT-WT); Additional switches are available for 3 or 4 way setup (Part# F-WCBT-WT); Battery operated Bluetooth remote control with wall cradle included (Part # F-RCBT-WT); Can be controlled through an Android or iOS wall mounted tablet with Wi-fi
- Modern Forms Fans are made with extremely efficient, silent DC motors and are up to 70% more efficient than traditional fans; Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click
- Suitable for indoor/outdoor use
- Six-speed DC motor
- Can be installed on slope ceilings up to a 30 degree slope (XF-SCK Slope Ceiling Kit available for slopes 30-45 Degrees); Downrods sold separately for longer lengths

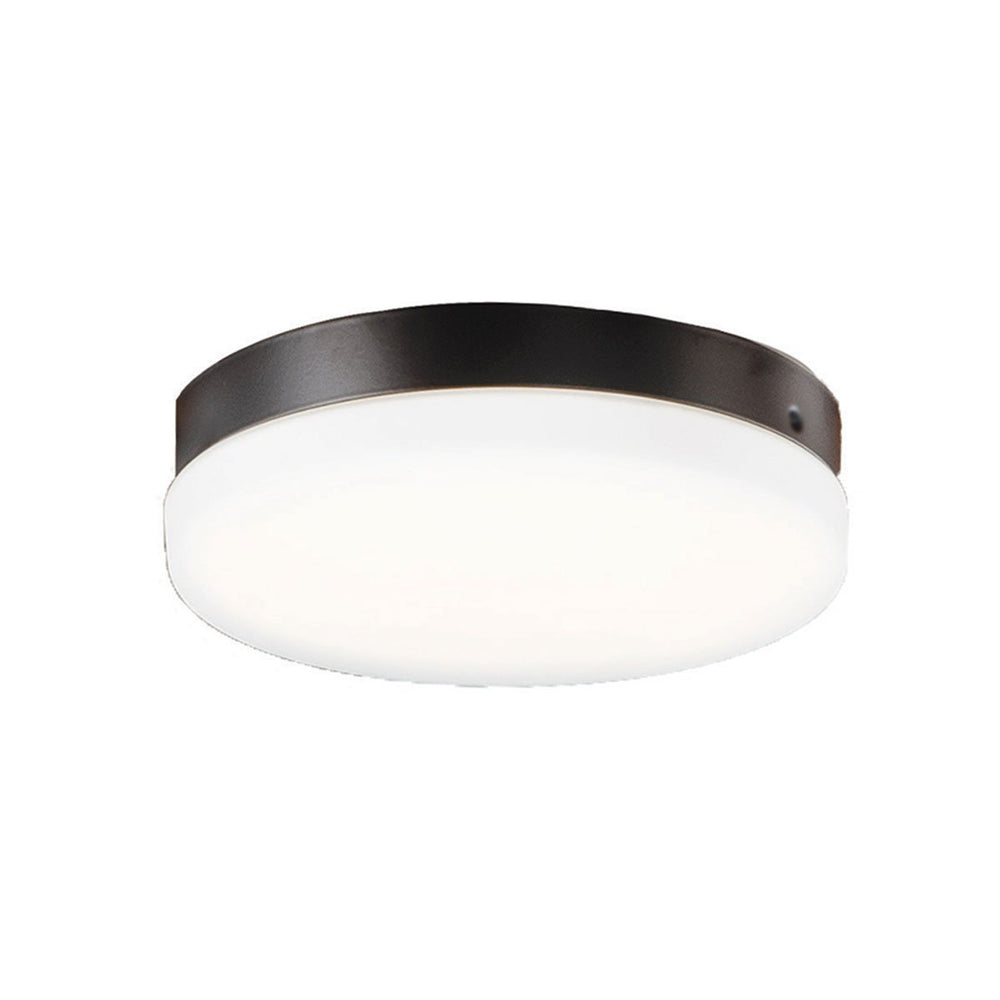

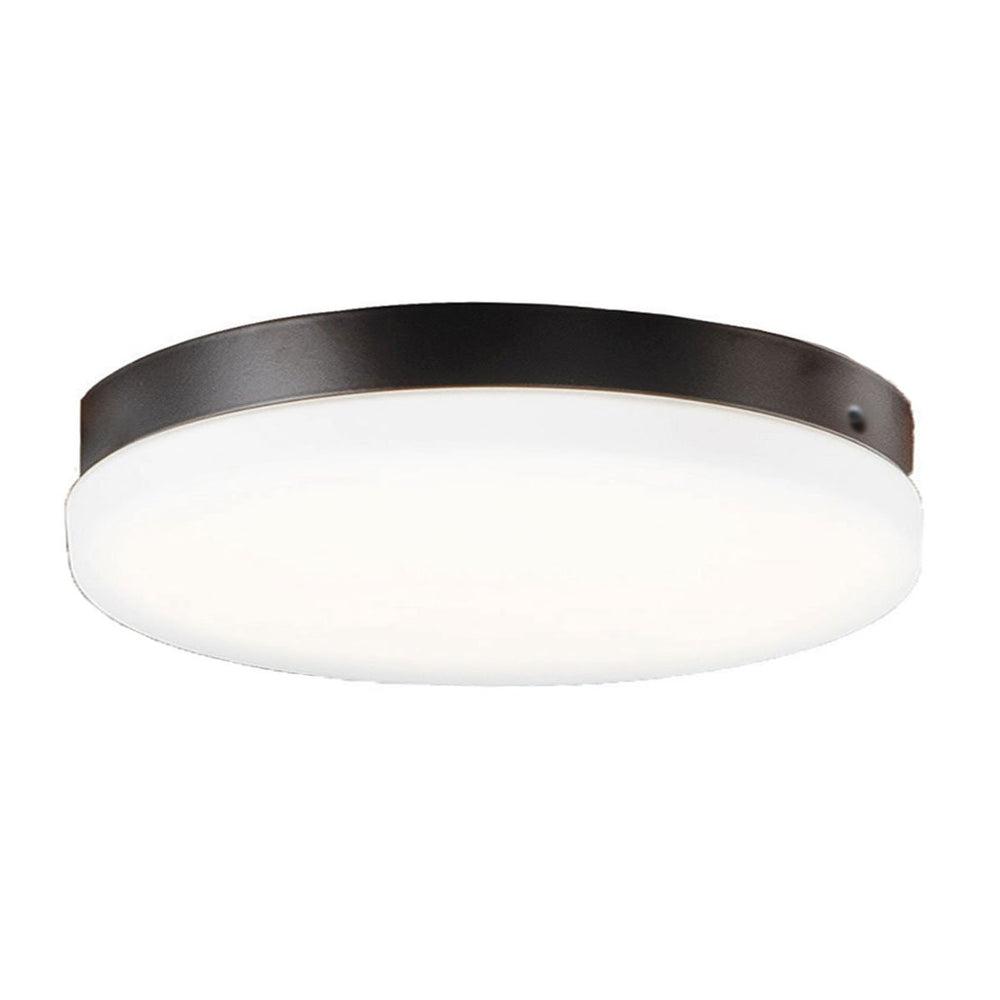

- Integrated LED luminaire (sold separately, part # F-1811-LED) powered by WAC Lighting, features effortless brightness control; An optional cover is included to conceal luminaire
- Included handheld remote
- UL and cUL Listed
- ETL and cETL Listed
- Wet rated for outdoor use
- ADA Compliant
- Title 24
- Title 20 Compliant
- Energy Star Rated
- Available in two sizes
- Available in 2700K, 3000K or 3500K color temperature

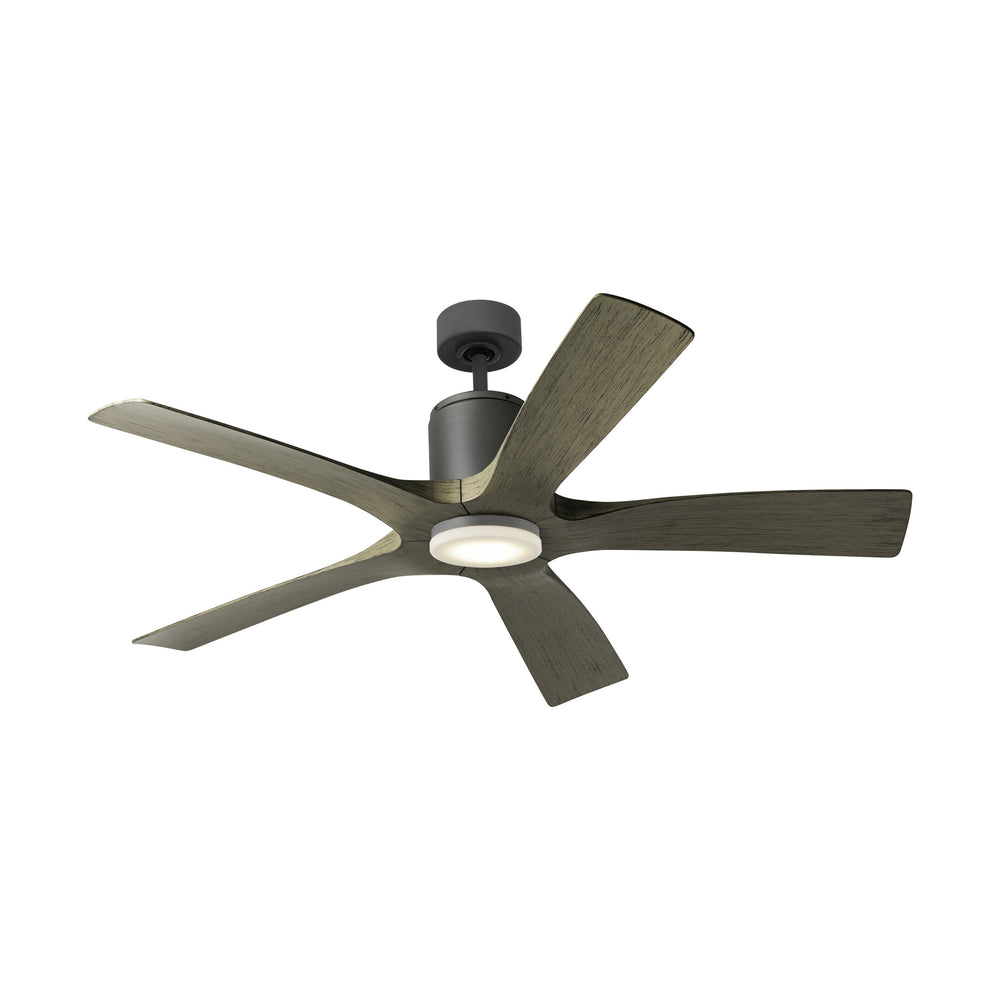

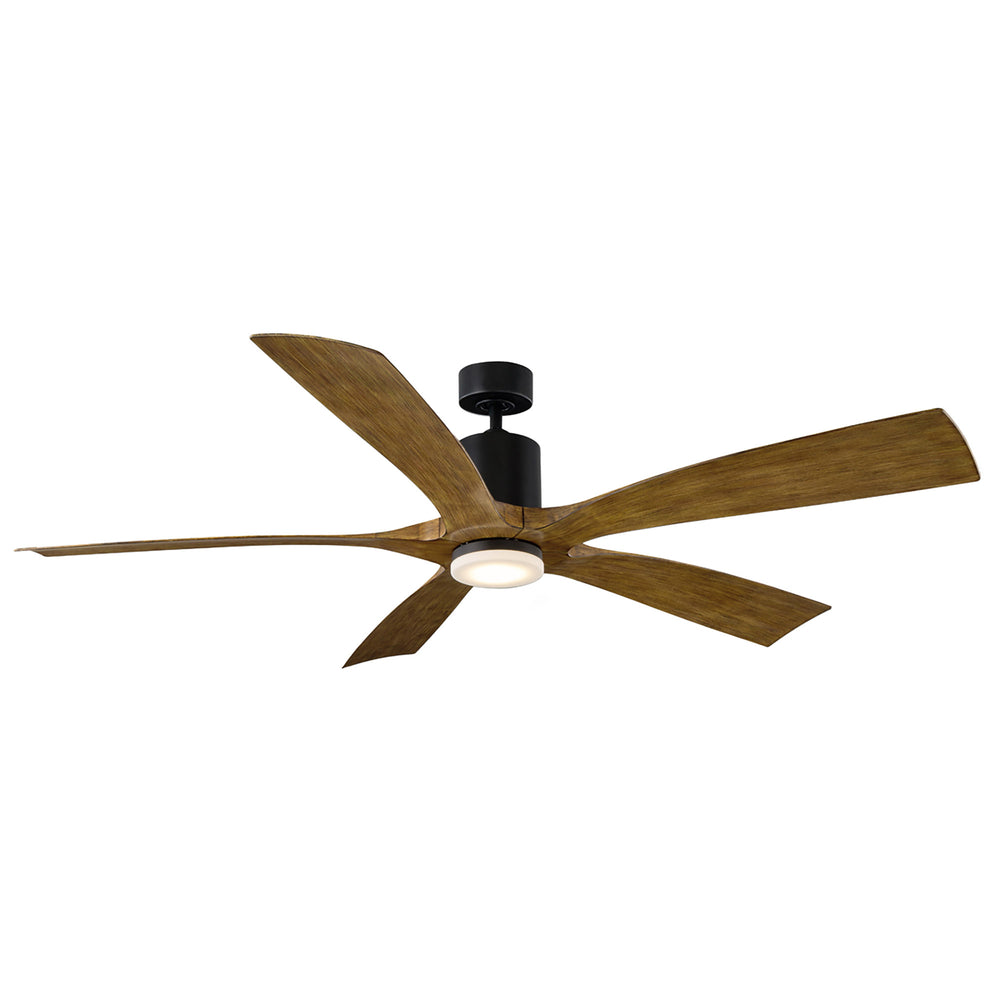

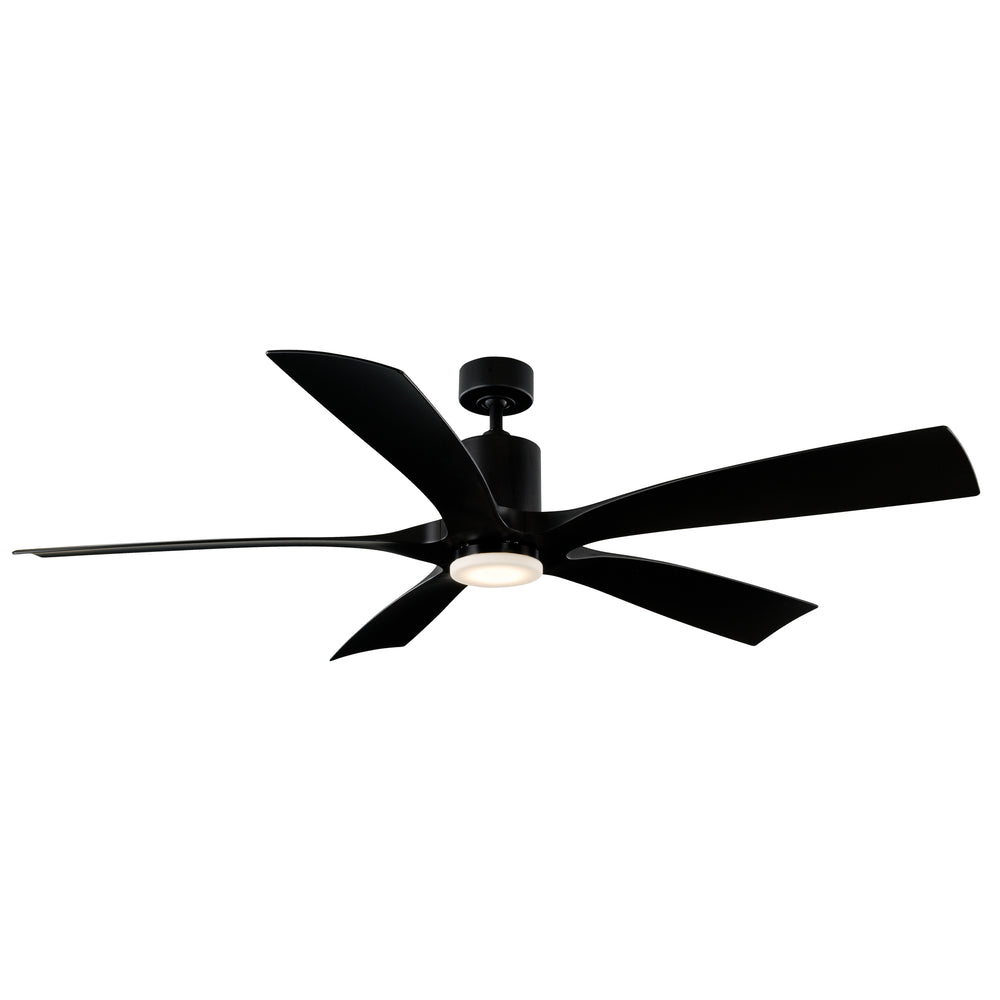

- Available in Matte Black, Graphite / Weathered Gray OR Matte Black / Distressed Koa finish
Current selected SKU:
Other available SKUs: FR-W1811-5-GH/WG+F-1811-LED-GH, FR-W1811-5-GH/WG+F-1811-LED-27-GH, FR-W1811-5-GH/WG+F-1811-LED-35-GH, FR-W1811-70-GH/WG+F-1811-5-LED-27GH, FR-W1811-70-GH/WG+F-1811-5-LED-35GH , FR-W1811-5-MB/DK+F-1811-LED-MB, FR-W1811-5-MB/DK+F-1811-LED-27-MB, FR-W1811-5-MB/DK+F-1811-LED-35-MB, FR-W1811-70-MB/DK+F-1811-5-LED-MB, FR-W1811-5-MB+F-1811-LED-MB, FR-W1811-5-MB+F-1811-LED-27-MB, FR-W1811-5-MB+F-1811-LED-35-MB, FR-W1811-70-MB+F-1811-5-LED-MB show more
32985670
"Modern Forms Smart Fans Aviator Indoor/Outdoor LED Ceiling Fan" (Stock ID 4736851214381)
As provided by Modern Forms Smart Fans:
5 years LED module, lifetime on the motor, and 1 year for all other parts.
Have a question about this product? Need help finding something? Our expert Customer Service team is here to help. Give us a call at (888) 222-4410 or email us.
WARNING For California Residents
Dimensions:
54 in blade span:
- Overall: 54 in W x 15.5 in H
- Blade Span: (5)-23.5 in
- Motor Size: 125 x 20 mm
70 in blade span:
- Overall: 70 in W x 16.9 in H
- Blade Span: (5)-31.5 in
- Motor Size: 125 x 25 mm
Blade Pitch: 14 degrees
Blade Height: 15.5 in
Body: 7 in Dia
Canopy: 6 in Dia x 2.5 in H
Wire Length: 80 in
Downrod: 0.75 in Dia x 6 in H
Energy Information:
54 in blade span:
- RPM: 161
- Airflow measure in cubic feet per minute at high speed (CFM): 8418
- Watts at high speed: 35.5
- Airflow efficiency at high speed (CFM/Watts): 237
70 in blade span:
- RPM: 103
- Airflow measure in cubic feet per minute at high speed (CFM): 11779
- Watts at high speed: 35
- Airflow efficiency at high speed (CFM/Watts): 337
Lamp Type:
- LED
Bulbs:
- 1 x 19.5W 120V 90CRI, 2700K/3000K/3500K Module LED lamp (not included)
Listing:
- UL
- cUL
- ETL
- cETL
- CSA
- Title 24
- Wet Rated
- Title 20
- ADA
Packaged Dimensions:
- 54 in blade span: 31.8 in W x 18.1 in D x 10.5 in H
- 70 in blade span: 36 in W x 22.1 in D x 12.4 in H
Product Weight:
- 54 in blade span: 19.75 lbs.
- 70 in blade span: 24.47 lbs.
Packaged Weight:
- 54 in blade span: 23.37 lbs.
- 70 in blade span: 31.97 lbs.
Aluminum, ABS blade.
