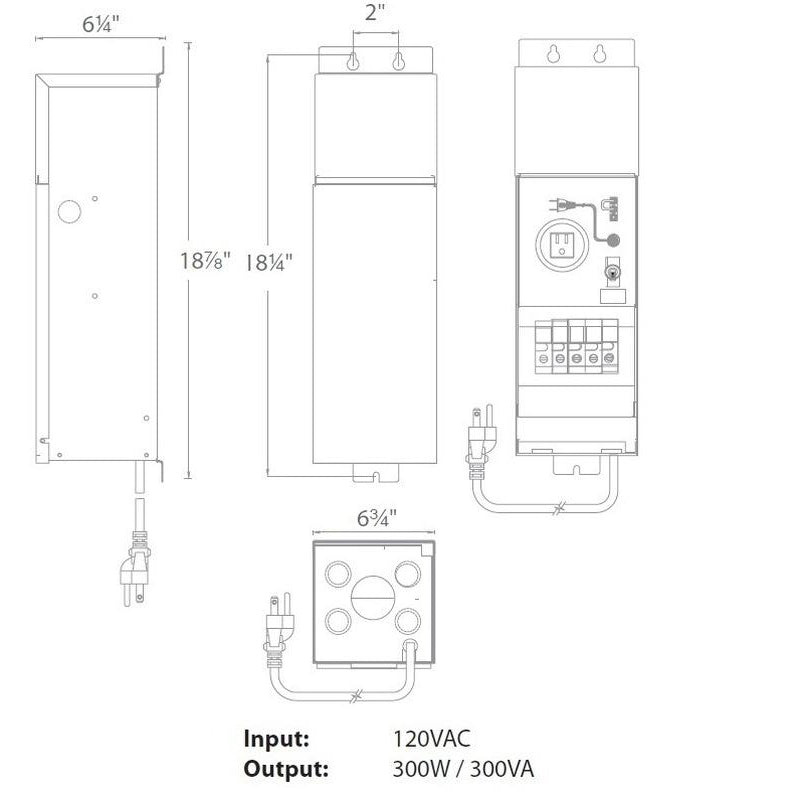

DIMENSIONS:

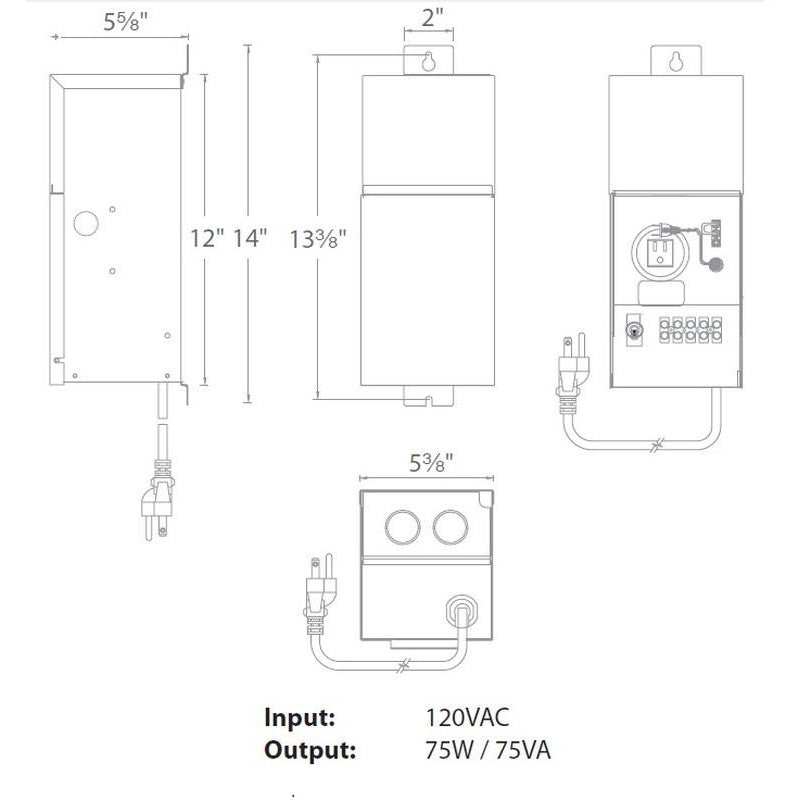

75 Watts Max:
- Overall: 5.6" W x 5.4" D x 14" H

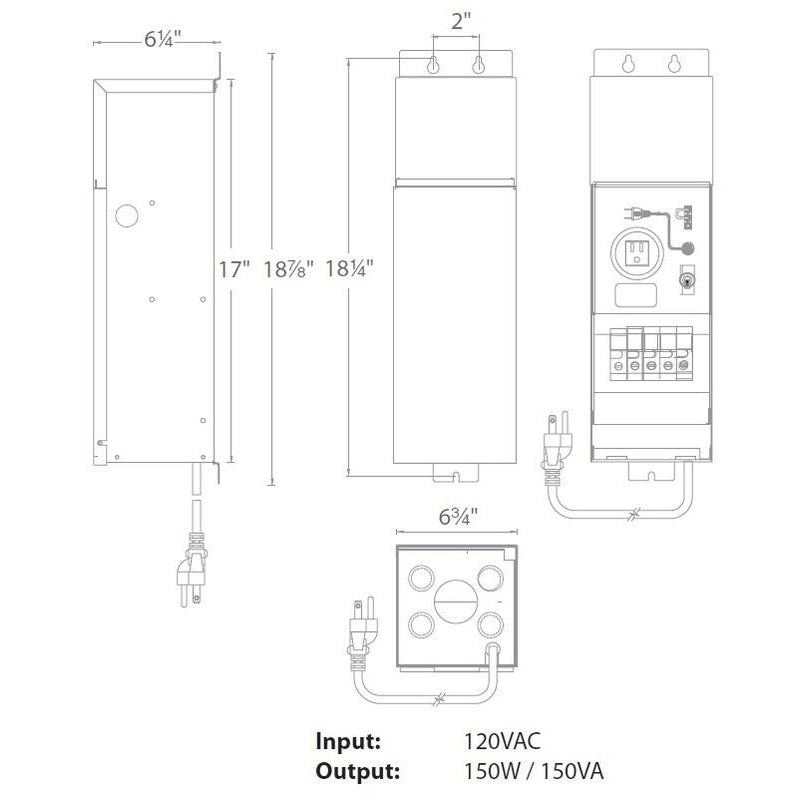

150 Watts Max:
- Overall: 6.25" W x 6.8" D x 18.9" H

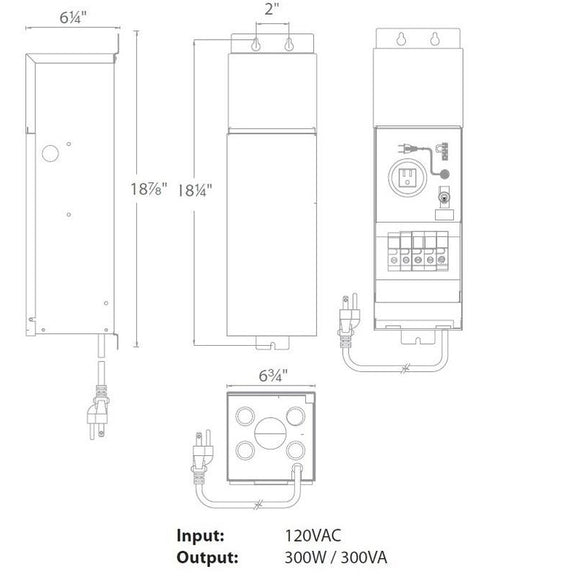

300 Watts Max:
- Overall: 6.25" W x 6.8" D x 18.9" H

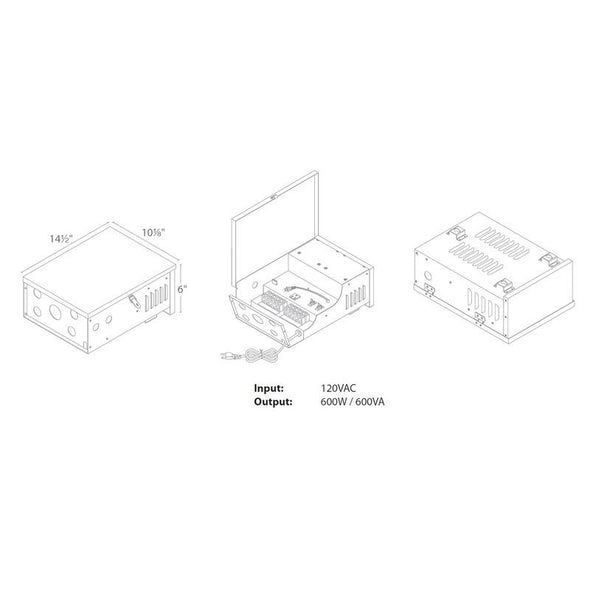

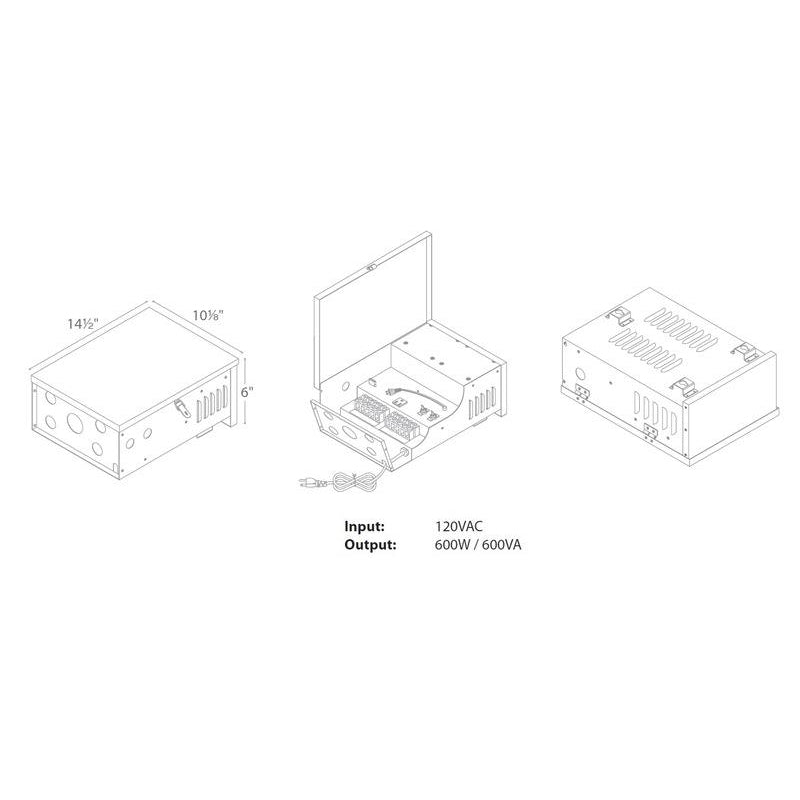

600 Watts Max:
- Overall: 6" W x 10.1" D x 14.5" H
Lead Wire:
- 72"
LISTING:
- UL 1838
- IP65
- Wet Locations
- Title 24
- ADA
Product URL
item #:
Prepared for:
Project:
Room:
Placement:
Approval:
- Shipping Cost: Free Shipping
-
Shipping Time: Please make a selection.
- Shop with Confidence: 30 Day Returns
- # SKU: Make a selection
- Quick Ship
- UL Listed
- Warranty Included
Description

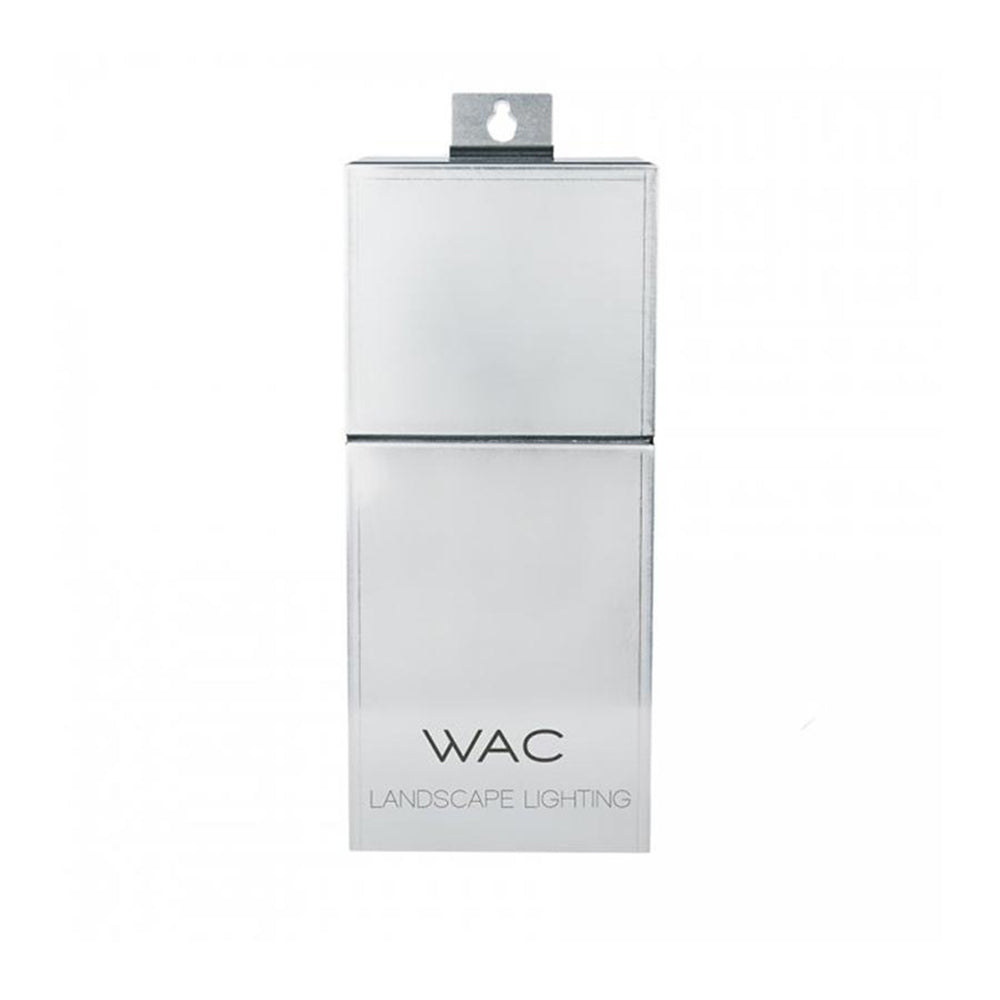

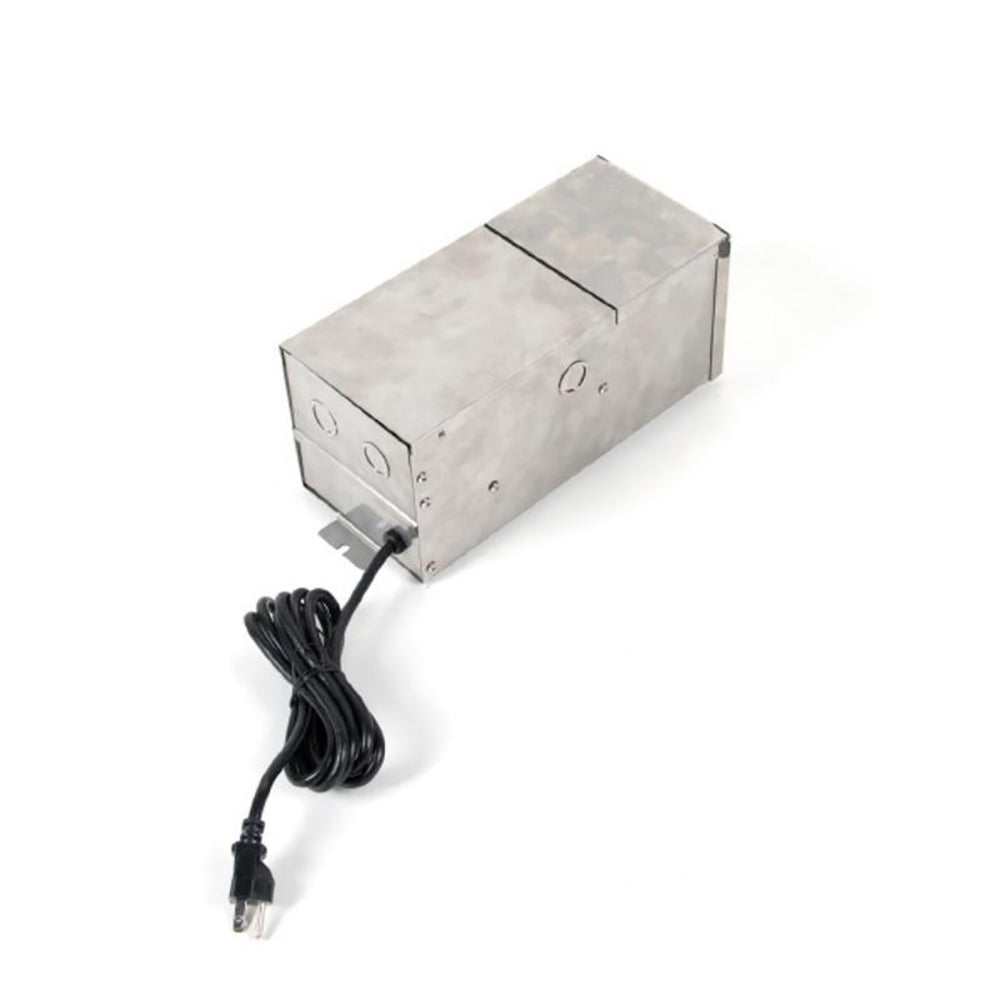

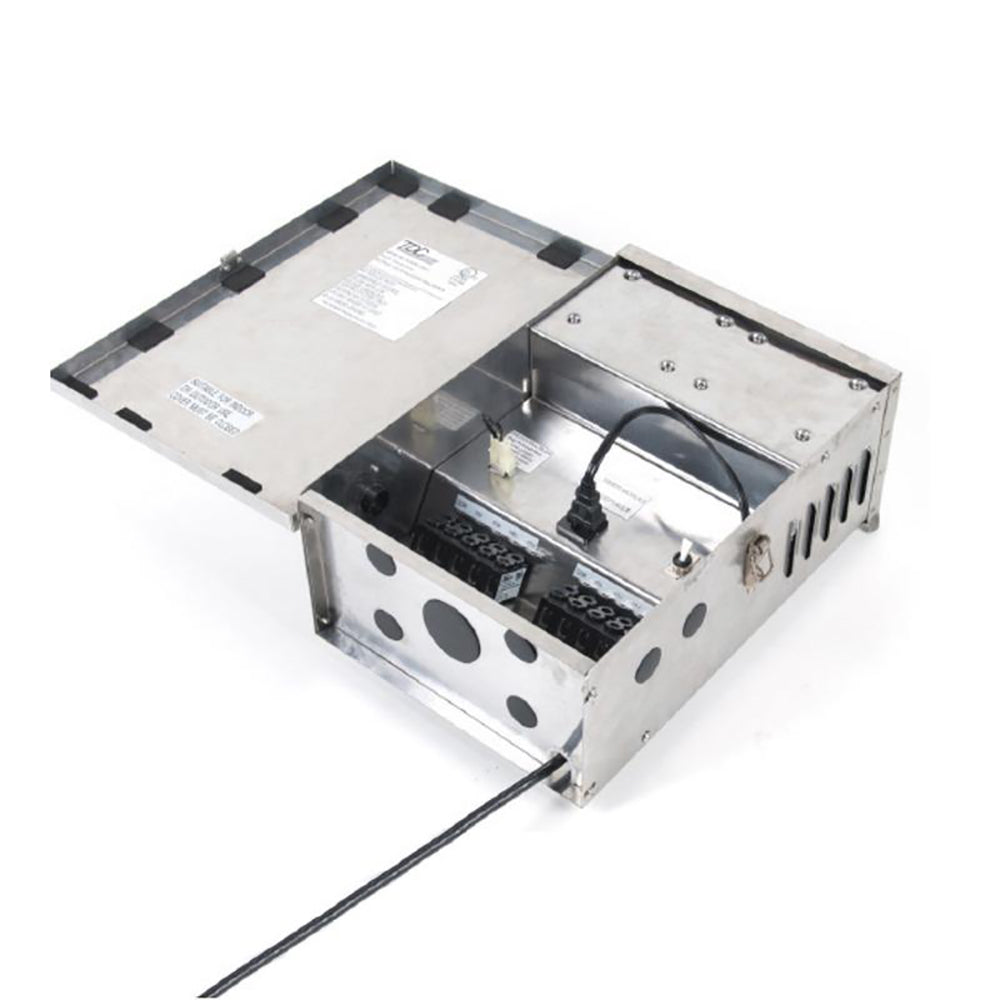

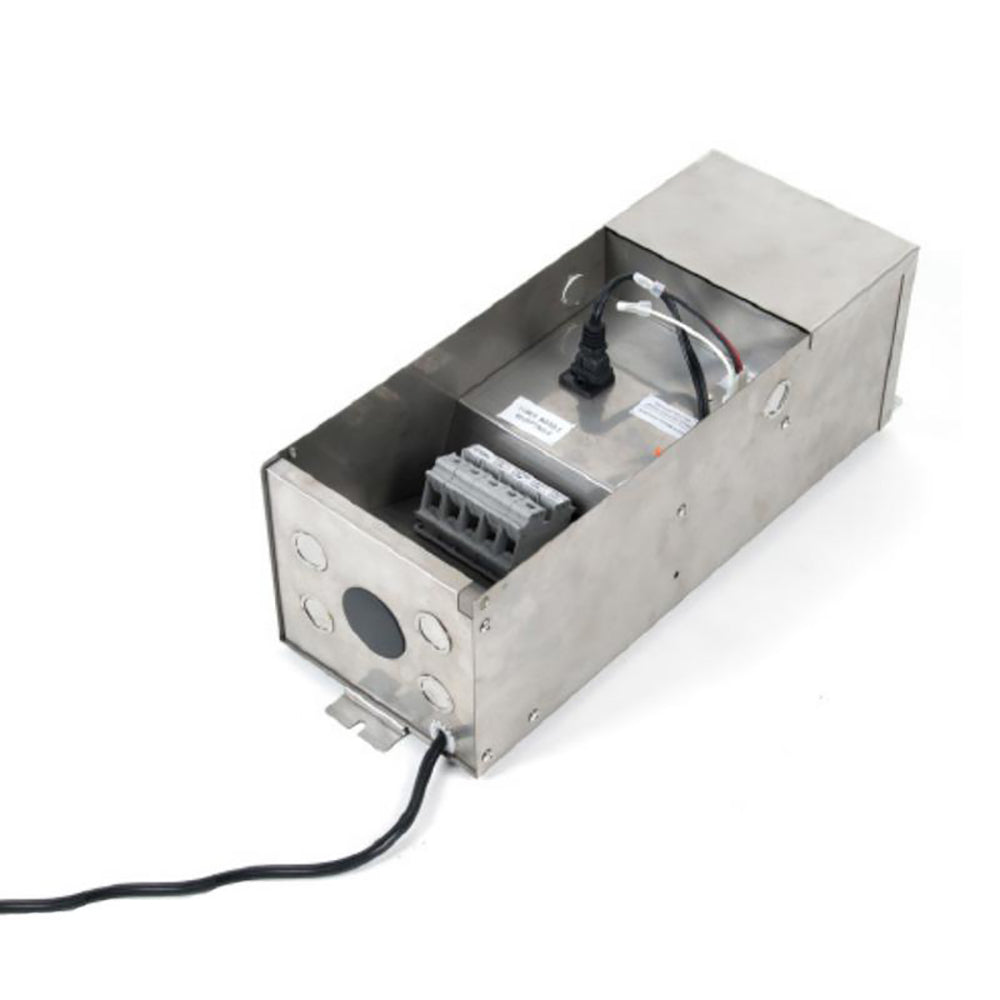

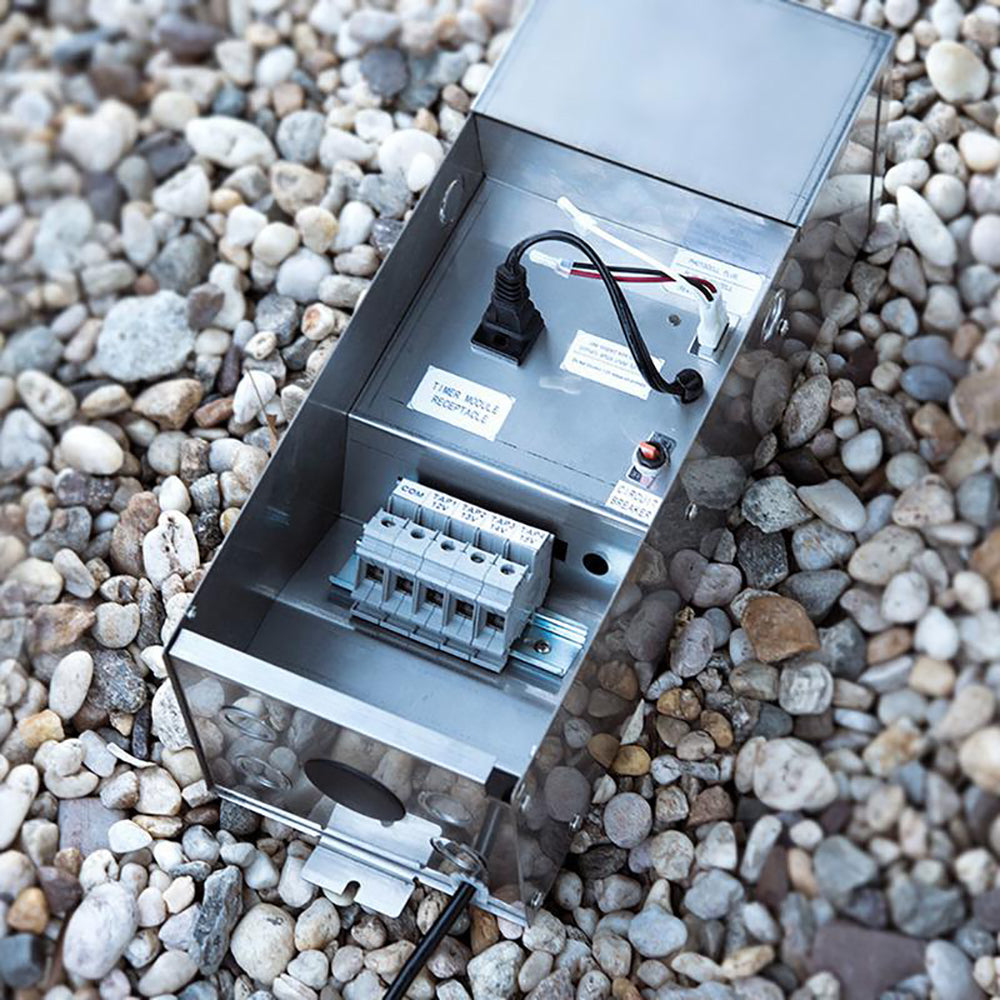

WAC Landscape Lighting Magnetic power supplies are 12V AC to support the entire line of 12V Landscape Lighting products, including Accent, Flood, Well, Indicator, Submersible, 12V Tape Light, Step and Wall, Deck and Patio, Path and Area, and Hardscape lighting products. The Stainless Steel housing enhances protection from corrosive and outdoor elements. Mounting extrusion with variating knockout sizes proved for a simple installation. Heavy gauged grounded and water resistant cord included for simple plug-in power feature. Hinged cover includes a loop to safely lock the power supply with an optional lock to secure access from inner contents. Multiple wire taps ranging from 12V-16V on terminal strip for long runs where voltage drop may occur. Plug-in outlets are built-in for optional photocell or mechanical timer installations. 100ft, 250ft, or 500ft WAC Landscape Lighting 12X2 low voltage burial landscape cable spools are recommended for installation.
Features
- WAC Landscape Lighting Collection
- 12V to 15V taps
- Knock outs for power and photosenser connections
- 3-prong outlet for timer
- Outdoor rated stainless steel transformer contains an outdoor rated 3-prong plug for power
- Dimmable
- UL Listed
- Available in 4 wattages: 75 Watts Max, 150 Watts Max, 300 Watts Max, 600 Watts Max
- Made in China
Current selected SKU:
Other available SKUs: 9075-TRN-SS, 9150-TRN-SS, 9300-TRN-SS, 9600-TRN-SS
"WAC Lighting 12V-15V Taps Magnetic Transformer" (Stock ID 10016006025)
As provided by WAC Lighting:
5 years functional, lifetime on finish
Have a question about this product? Need help finding something? Our expert Customer Service team is here to help. Give us a call at (888) 222-4410 or email us.
WARNING For California Residents
DIMENSIONS:
75 Watts Max:
- Overall: 5.6" W x 5.4" D x 14" H
150 Watts Max:
- Overall: 6.25" W x 6.8" D x 18.9" H
300 Watts Max:
- Overall: 6.25" W x 6.8" D x 18.9" H
600 Watts Max:
- Overall: 6" W x 10.1" D x 14.5" H
Lead Wire:
- 72"
LISTING:
- UL 1838
- IP65
- Wet Locations
- Title 24
- ADA
Stainless steel.
